Awning Mount for Bed Racks | XTR Awning Upright Kit

$145.00

Awning Mount for Bed Racks | XTR Awning Upright Kit

$145.00

CUT LENGTH 8" 10" 12" 14" 16" 18"

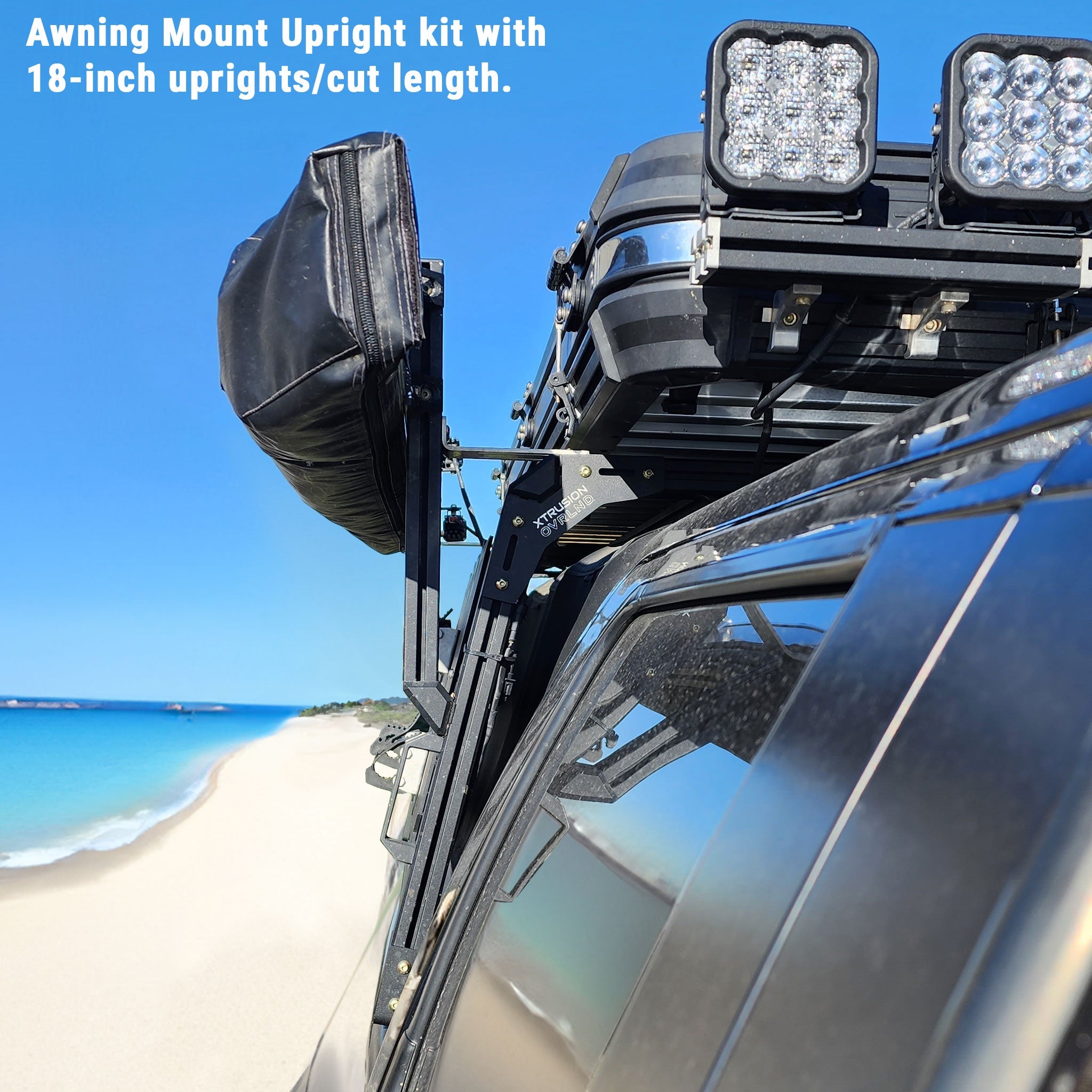

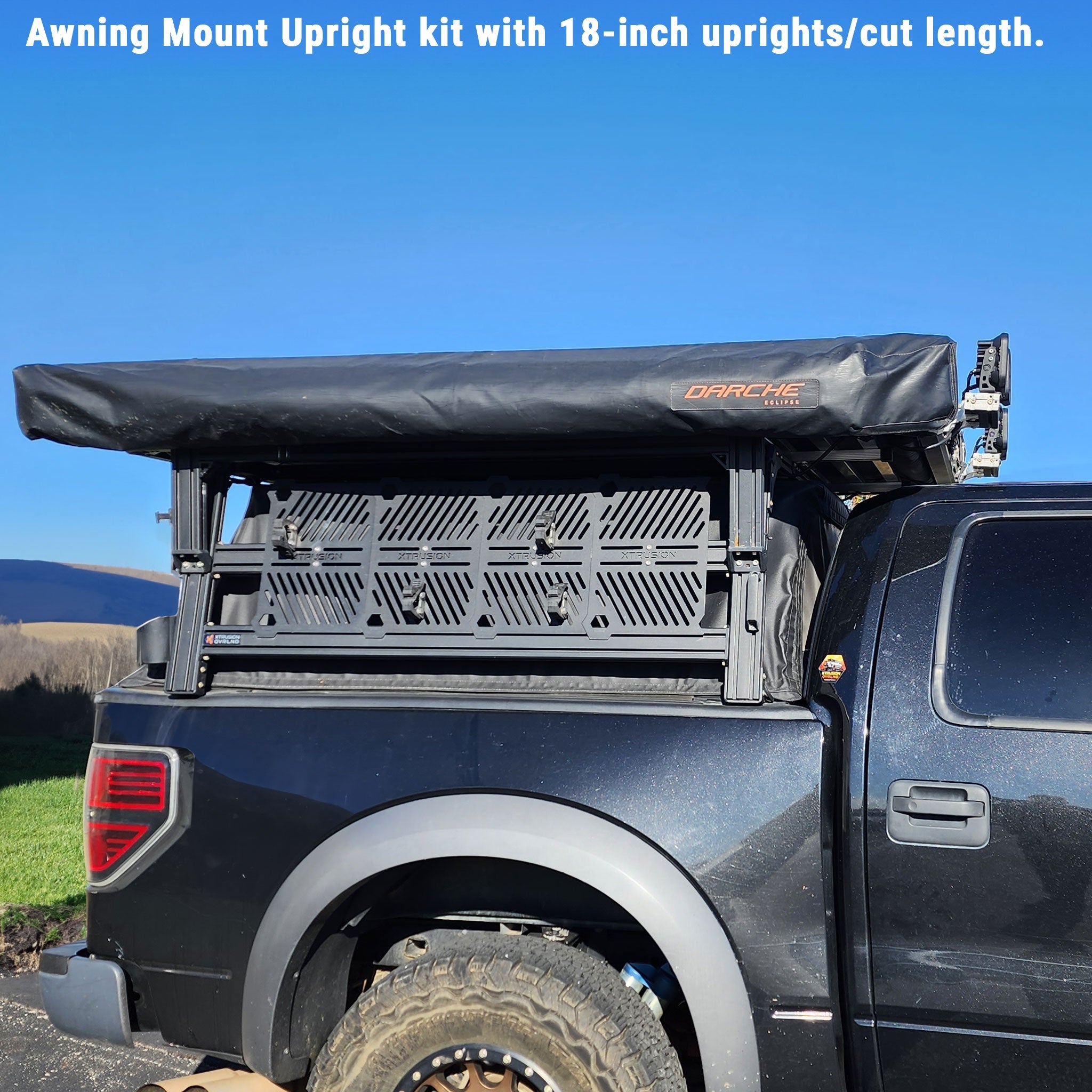

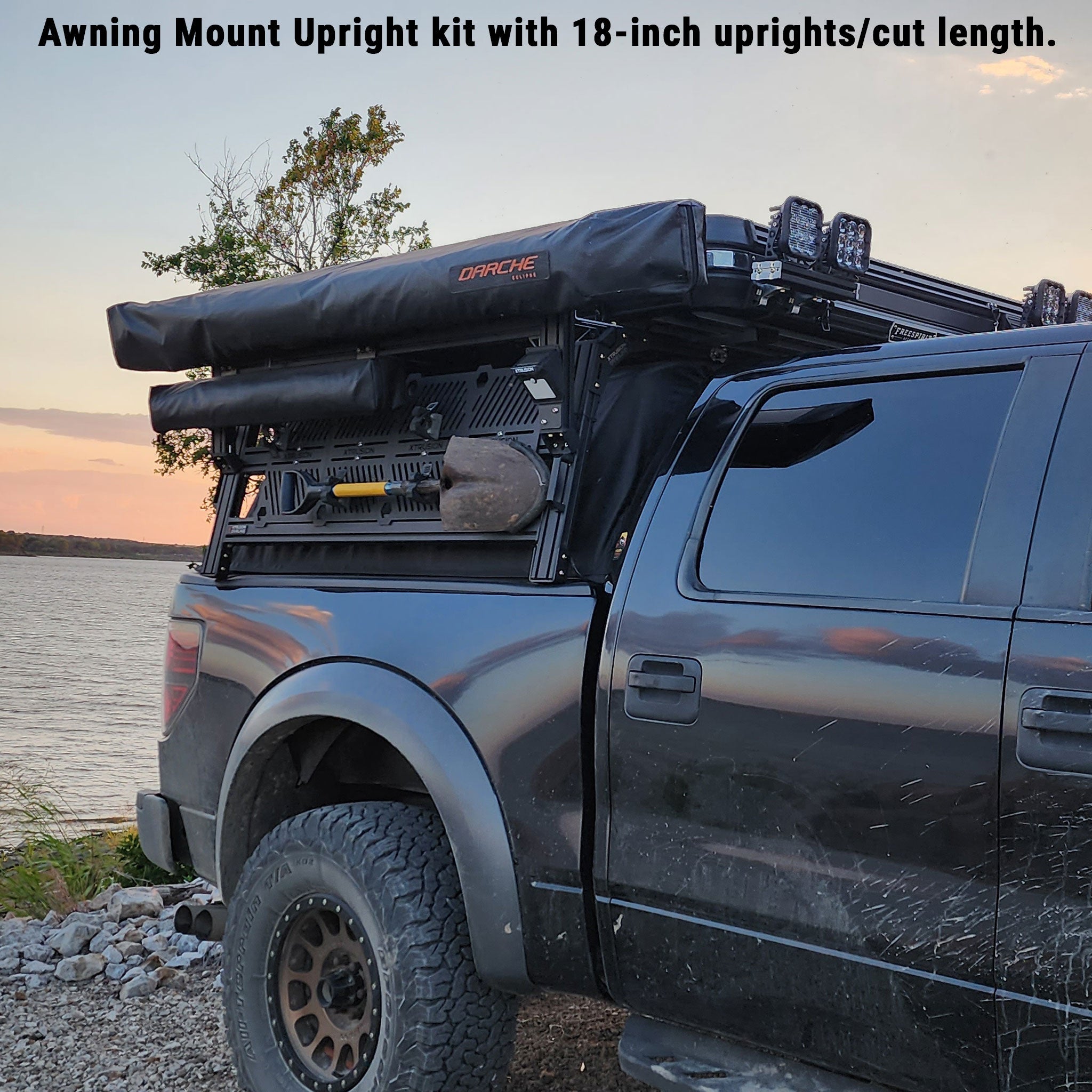

Mount your awning to your bed rack at the perfect height. The XTR Awning Upright Kit V2 lets you attach any awning — using its own provided hardware — directly into the uprights of your XTR bed rack, with adjustable height and positioning. A clean, no-compromise awning mount and one of the most useful shade-and-shelter bed rack accessories for any overland or jobsite setup.

Whether you’re shading a basecamp on the trail or a work area on site, this truck awning mount raises your awning above the rack and dials in the exact height you want. Built from powder-coated 1530 extrusion with adjustable brackets, it holds standard awnings solidly and steps up to heavy 270-degree awnings when you add the support braces.

Why the XTR Awning Upright Kit V2

Adjustable height & position — set your awning exactly where you want it.

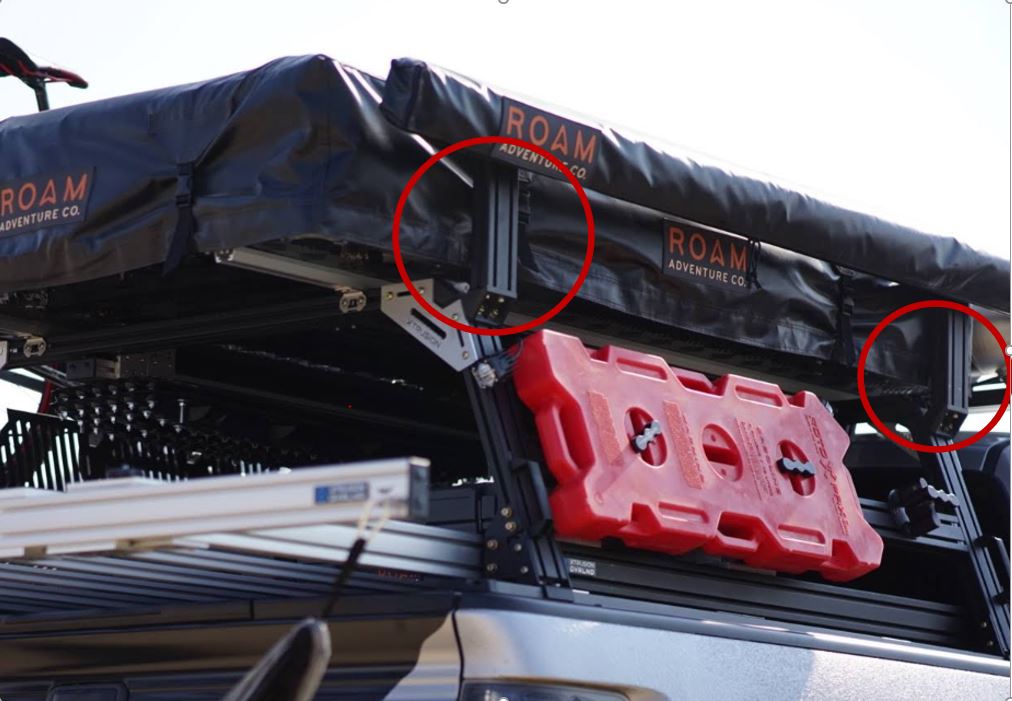

Fits any awning — mounts using the awning’s own provided hardware, straight into the T-slot.
Strong hold — supports up to 60 lbs on the uprights, or up to 100 lbs for heavier 270-type awnings with the added support braces.
Powder-coated extrusion — black 1530H sections built to match your rack.
Dual-market — camp shade for overland; a covered work area on the jobsite.

Fitment

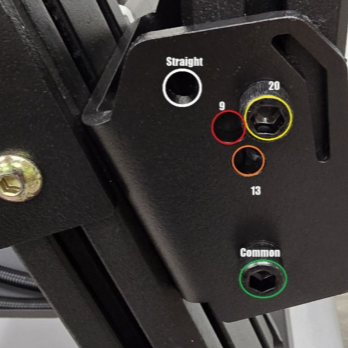

Compatible with 20°, 13°, and 9° XTR1 and XTR3 bed racks. NOT compatible with XBRS or XO.SKLTN bars. Choose your upright height (8" to 18") at checkout to match your setup.

Estimated lead time: 1–2 weeks.

What’s included

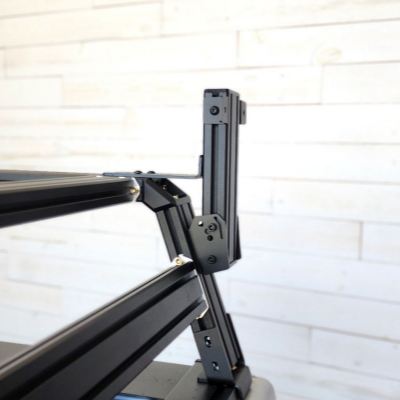

2 — Adjustable awning upright brackets
2 — Sections of 1530H extrusion, powder-coated black (select your height)
4 — Corner gussets (mount the awning straight into the extrusion T-slots)
2 — End caps for the extrusion tops
Upright support braces (add support for heavier 270-type awnings — 100 lbs limit with brace)
All required hardware

Awning is NOT included — this kit mounts your awning to the rack using the awning’s provided hardware. Some awning brands my need to use different sized hardware. .
