2007-2018 Jeep Wrangler JK Switchback LED Halo Headlights- DRL and Turn Signal
$405.99

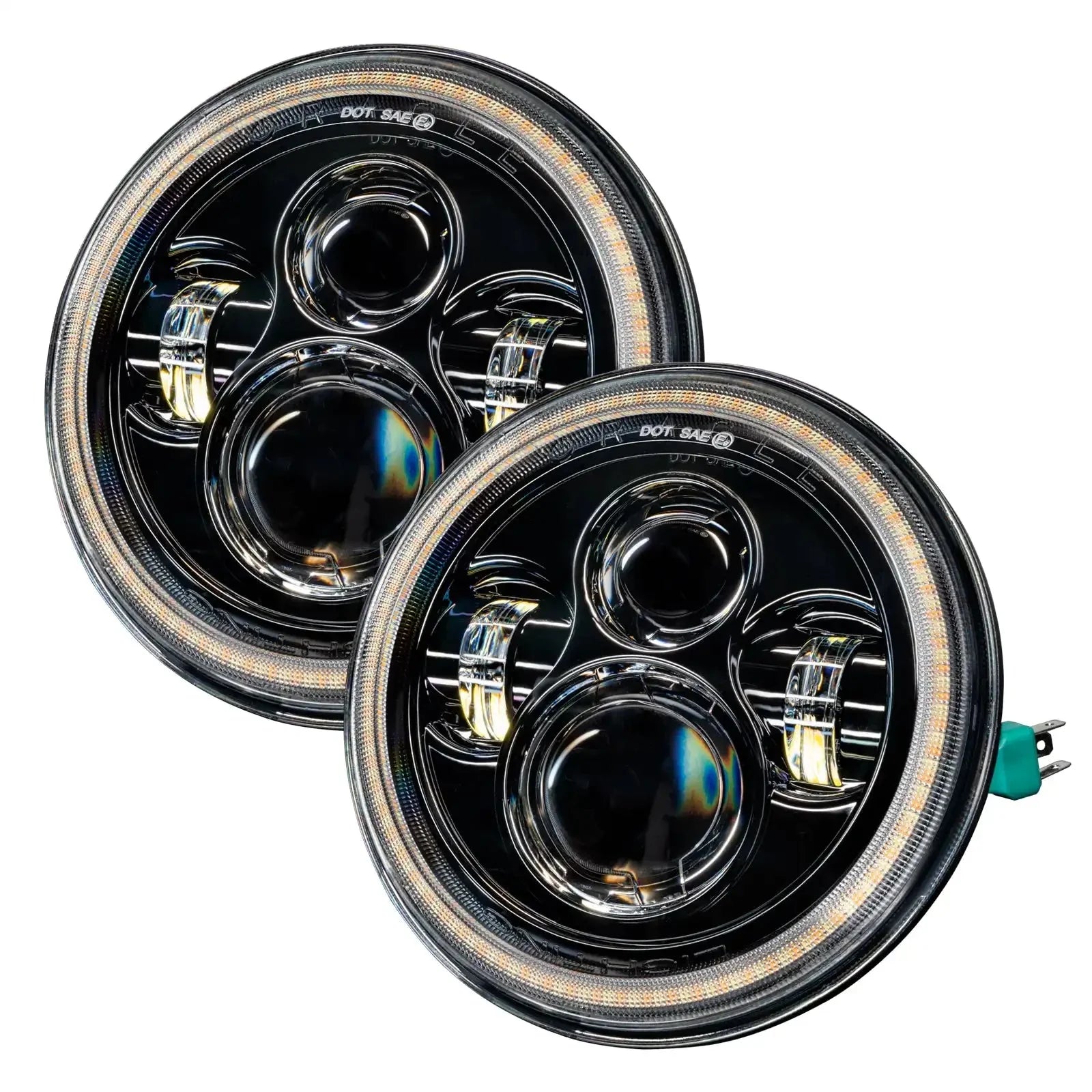

The ultimate LED headlight upgrade for the 2007-2018 Jeep Wrangler JK - now with an integrated white/amber switchback halo that serves as both a DRL and a turn signal. Powered by Philips Luxeon ZES LEDs with precision optics, wide beam pattern, and a sharp cut-off line. DOT compliant, plug-and-play, and backed by a 2-year replacement warranty. Sold as a pair.
✓ 2007-2018 Jeep Wrangler JK ✓ Philips Luxeon ZES LEDs ✓ 3,600 Lm High Beam ✓ White/Amber Switchback Halo ✓ DRL + Turn Signal ✓ DOT Compliant ✓ 12V-24V ✓ Plug & Play ✓ 2-Year Warranty ✓ Pair Included
ORACLE Part #: 5769-123 | Size: 7" Round | Bezel: Black
(Currently Backordered)
(Currently Backordered)
Product Overview ▼
ORACLE's 7" JK LED Halo Headlights are the definitive headlight upgrade for the Wrangler JK platform. High-quality LED illumination is focused through advanced precision optics for a wide beam pattern with a sharp cut-off line - maximizing road coverage while keeping oncoming drivers safe.

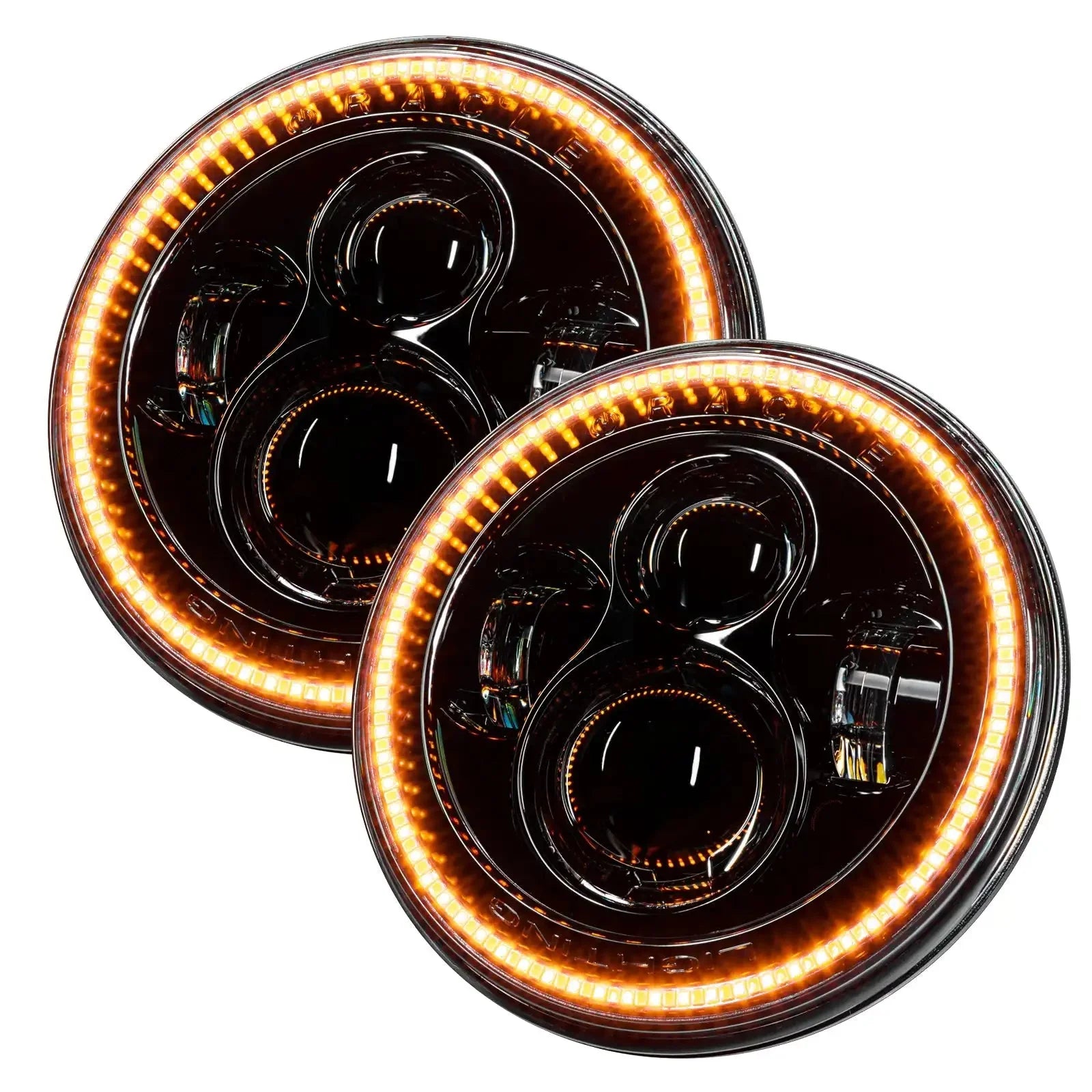

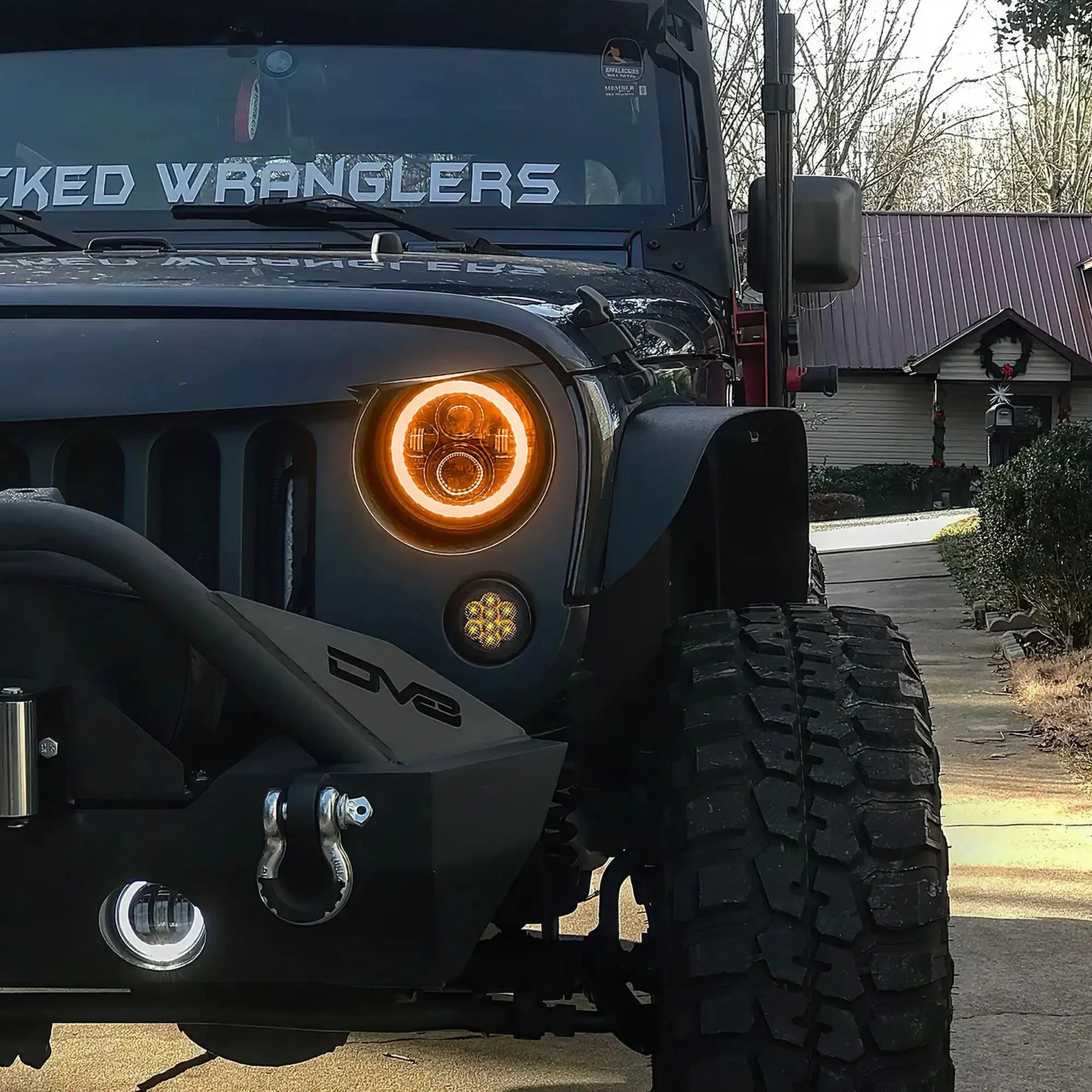

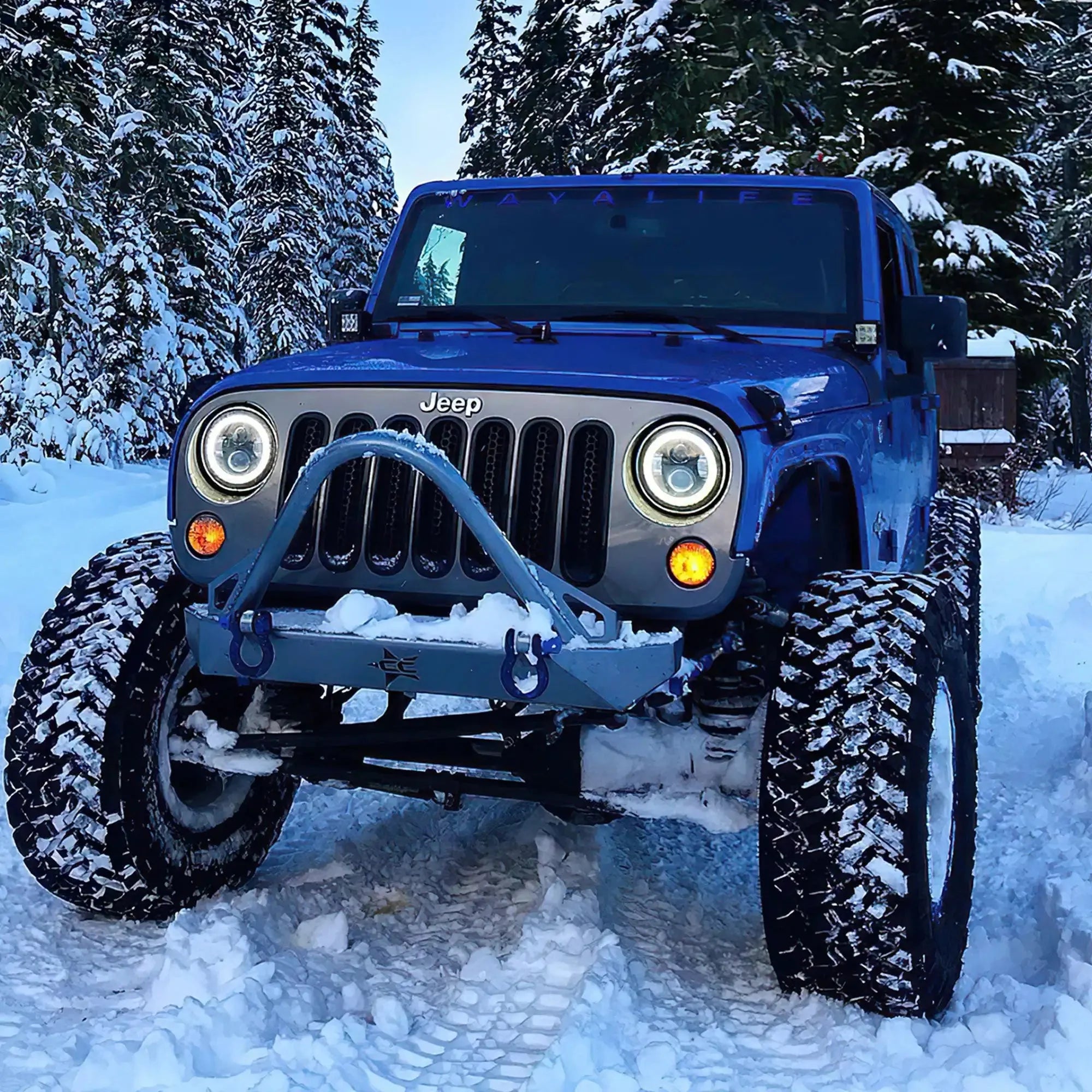

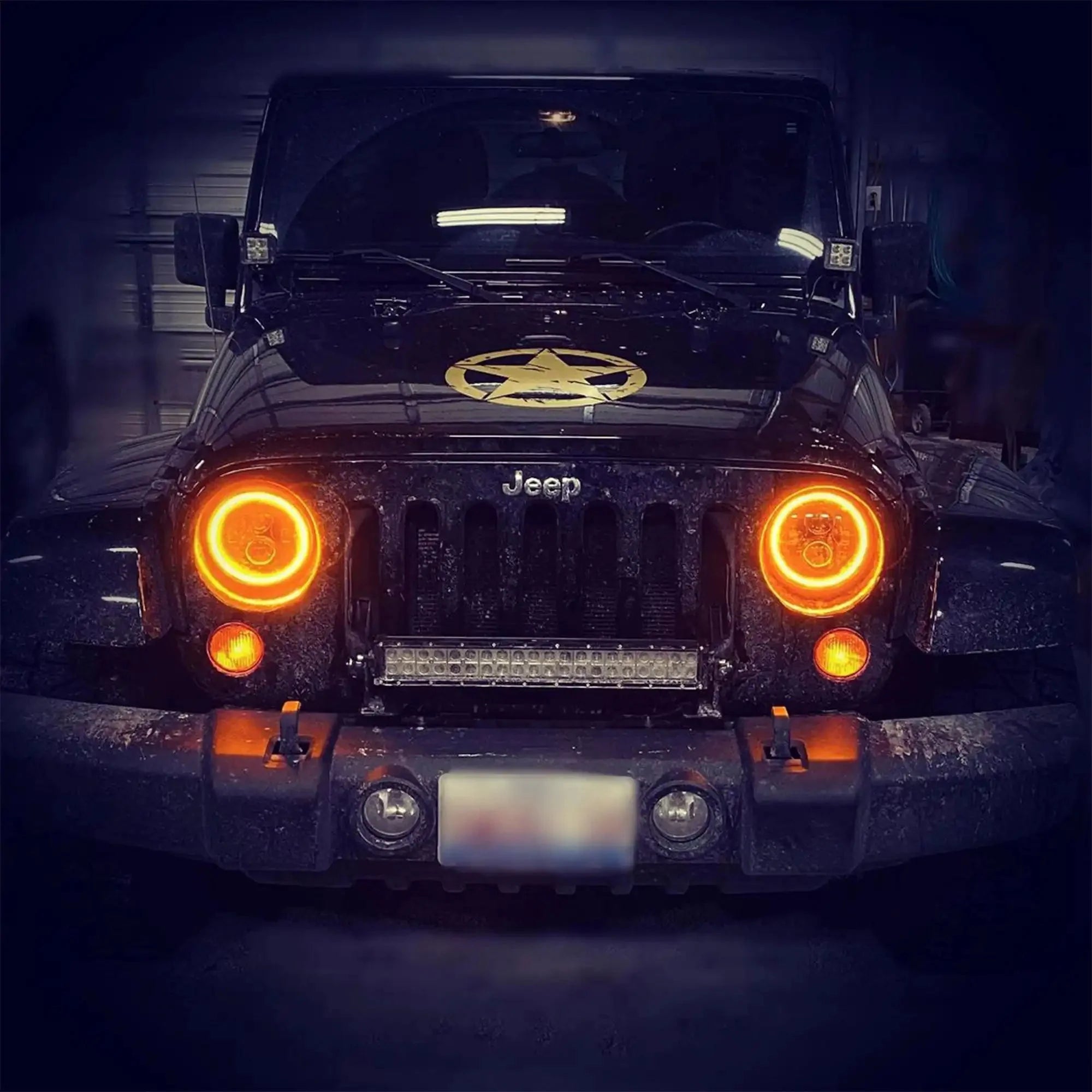

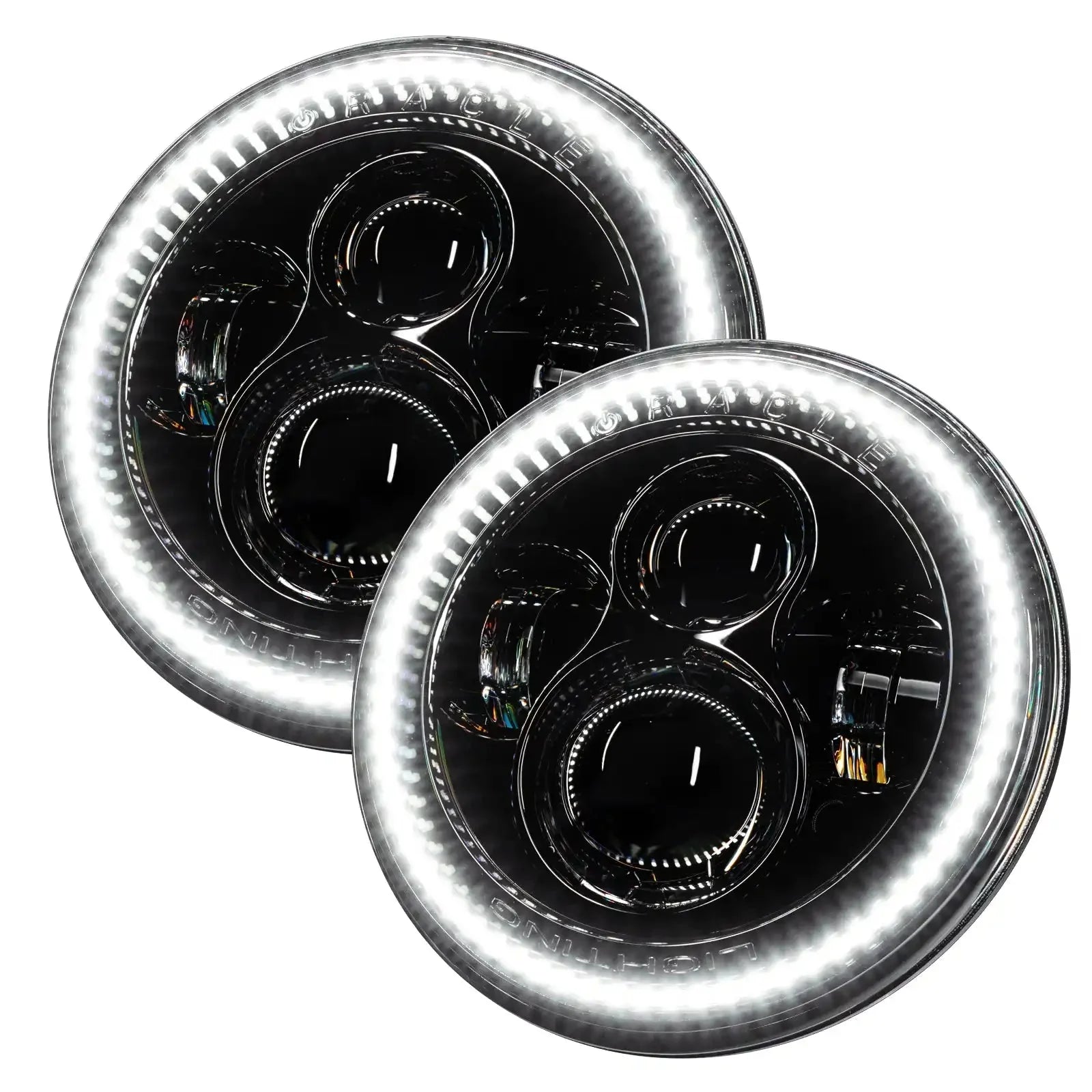

The integrated white/amber switchback halo ring is pre-installed and serves dual duty: white as a DRL during normal driving, automatically switching to amber when the turn signal is activated. This gives the JK a modern, premium look while adding genuine functional safety.
The latest revision features Philips Luxeon ZES LED chips - upgraded from Cree - delivering 130 lm/W efficacy with lower thermal output. A constant current LED driver on the main circuit board controls the halos for improved brightness, reliability, and a wider 12V-24V input range that protects against voltage spikes.
Key Features ▼
- Philips Luxeon ZES LED chips - 130 lm/W efficacy, lower thermal output vs. Cree
- White/Amber switchback halo pre-installed - white DRL, amber turn signal
- Wide beam pattern with sharp cut-off line - precision optics for maximum road coverage
- Constant current LED driver - protects halos from voltage spikes, extends lifespan
- Die-cast housing with corrosion-resistant coating
- Hard-coated polycarbonate lens - scratch and UV resistant
- Heavy-duty solid-state electronics
- Easy plug-and-play installation - direct JK fitment
- DOT compliant - FMVSS 108 tested
- 12V-24V DC input - wide voltage range
- 2-Year Replacement Warranty
- Sold as a pair - (2) headlights per order
Performance & Technical Specifications ▼
Part Number5769-123
Fitment2007-2018 Jeep Wrangler JK
Size7" Round
LED ChipPhilips Luxeon ZES (130 lm/W)
Low Beam Wattage30W Normal / 36W Max
Low Beam Lumens2,200 lm / 3,600 Raw lm
High Beam Wattage40W Normal / 48W Max
High Beam Lumens3,600 lm / 4,800 Raw lm
Color Temperature6000K (Cool White)
Input Voltage12V-24V DC
Current Draw2.50A @ 12V / 1.30A @ 24V
HaloWhite/Amber Switchback (Pre-Installed)
LensHard-Coated Polycarbonate
HousingDie-Cast, Corrosion-Resistant Coating
ComplianceDOT / FMVSS 108
Warranty2-Year Replacement
QuantityPair (2 headlights)
Switchback Turn Signal - Wiring Options & Notes ▼
The switchback halo can be configured two ways depending on whether you want to retain your factory turn signal alongside the halo turn signal:
- Option A - Halo turn signal only (no factory turn signal): No additional parts needed. However, the halo will hyper-flash (rapid flash / bulb-out warning). To prevent this, add a Load Equalizer (50W / 6 Ohm) for each headlight.
- Option B - Halo turn signal + factory turn signal together: Purchase the JK Switchback Turn Signal Y-Splitter Adapter (one per headlight). This allows both the factory turn signal and the halo amber to operate simultaneously.
💡 Most customers choose Option B for the cleanest, most complete look. The Y-Splitter adapter is sold separately.
Wiring Diagrams:
Fitment ▼
- 2007 Jeep Wrangler JK
- 2008 Jeep Wrangler JK
- 2009 Jeep Wrangler JK
- 2010 Jeep Wrangler JK
- 2011 Jeep Wrangler JK
- 2012 Jeep Wrangler JK
- 2013 Jeep Wrangler JK
- 2014 Jeep Wrangler JK
- 2015 Jeep Wrangler JK
- 2016 Jeep Wrangler JK
- 2017 Jeep Wrangler JK
- 2018 Jeep Wrangler JK
💡 Fits both 2-door and 4-door (Unlimited) JK models.
What's Included ▼

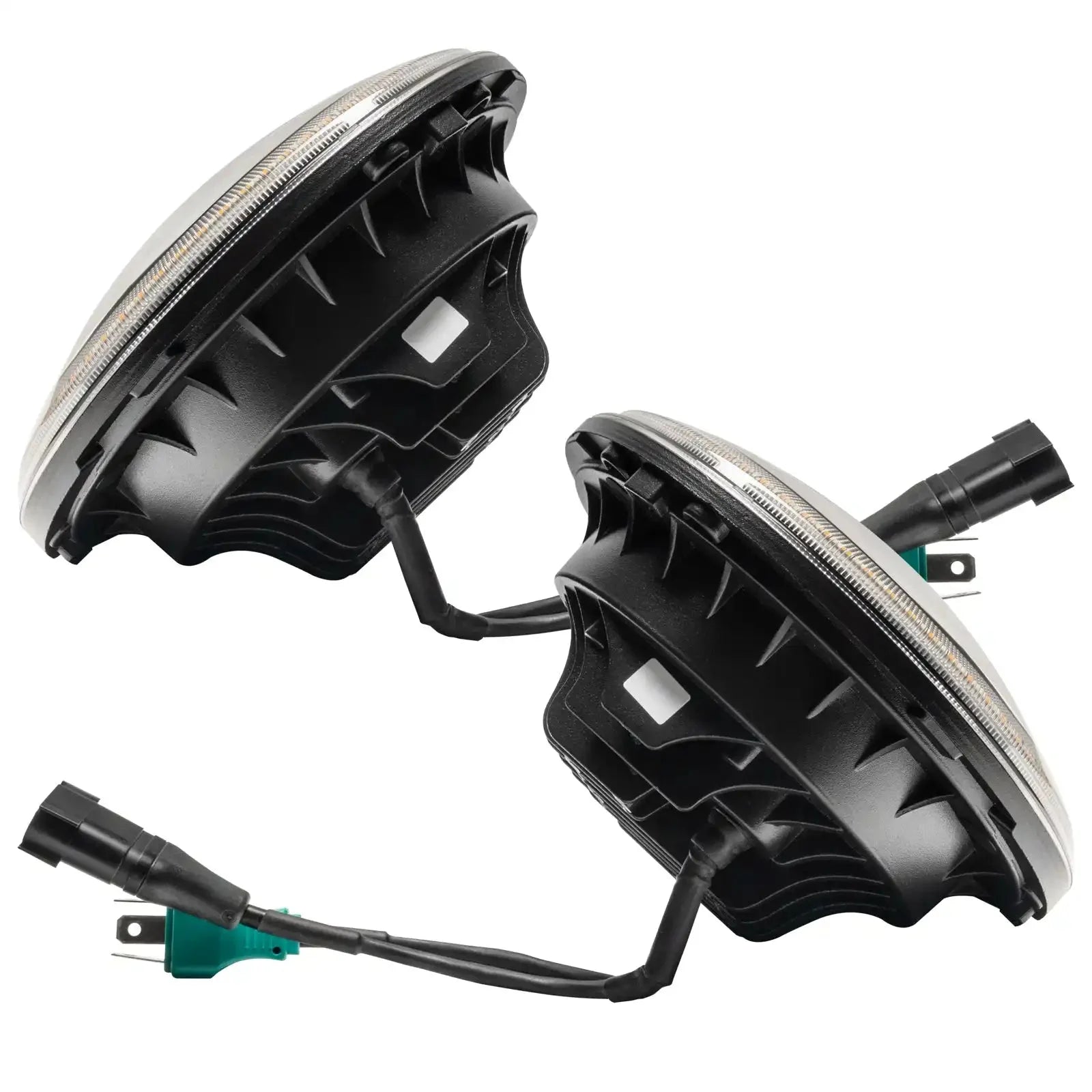

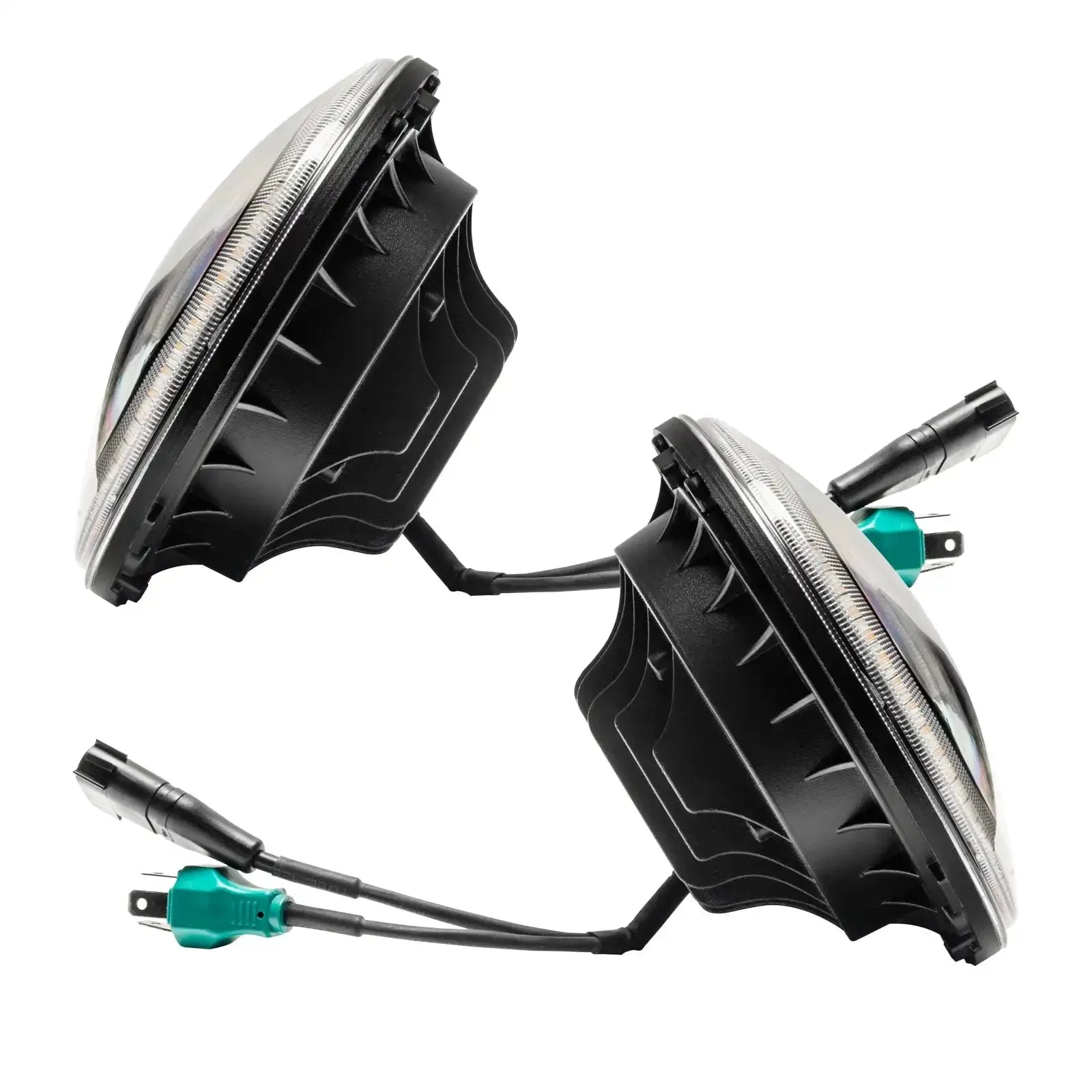

- (2) ORACLE 7" High-Powered LED Headlights - Black Bezel, with pre-installed White/Amber Switchback Halo
⚠️ Y-Splitter Adapter and Load Equalizer are sold separately. See the Switchback Turn Signal - Wiring Options accordion above for details.
Installation Guide & Resources ▼
Plug-and-play installation - direct replacement for the factory JK 7" headlights. Estimated install time: ~2 hours.
Warranty, Shipping & Returns ▼
Badges & Certifications ▼
DOT Compliant - View FMVSS 108 Test Report
